The beating heart of any home

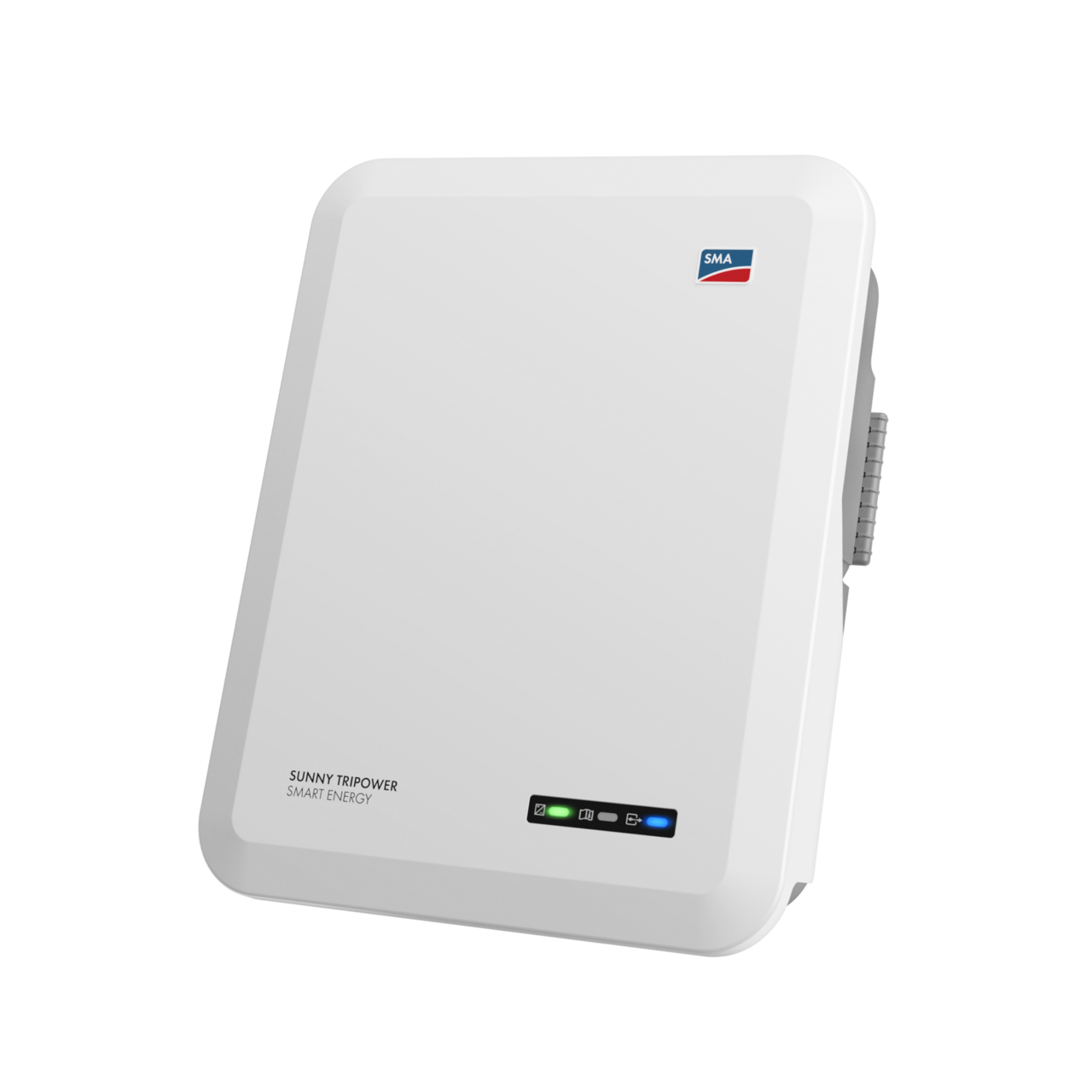

Sunny Tripower Smart Energy 5.0 / 6.0 / 8.0 / 10.0
The three-phase hybrid inverter for homeowners
The Sunny Tripower Smart Energy hybrid inverter is the two-in-one system for supplying solar power at home. With this, SMA has combined smart technology and integrated services to create a space-saving compact system, drawing on more than 30 years of experience in storage. With Sunny Tripower Smart Energy, users can easily and conveniently generate, use and store solar power. It is possible to make additions to the system at any time, incorporating e-mobility or heat pumps. The integrated battery-backup function safeguards the household electricity supply even in the event of a grid failure. That makes domestic PV systems comprehensive, smart energy systems with solar energy self-sufficiency of up to 100 percent.
Benefits
Store energy
Three-phase / DC-coupled
Integrated battery-backup function
Fast charging
Compatible with high-voltage batteries from leading manufacturers
Compatible with SMA Home Storage battery
Smart and effective
Smart energy management with the Sunny Home Manager
Maximum energy yield thanks to SMA ShadeFix
Connect to the grid easily
Intuitive commissioning via app
Quick and easy to install thanks to external terminals
Compact design means minimum space requirements
Convenient all round
Full-scale professional support for solar power professionals
Automated service thanks to SMA Smart Connected
Warranty extension from 5 to 10 years – free of charge

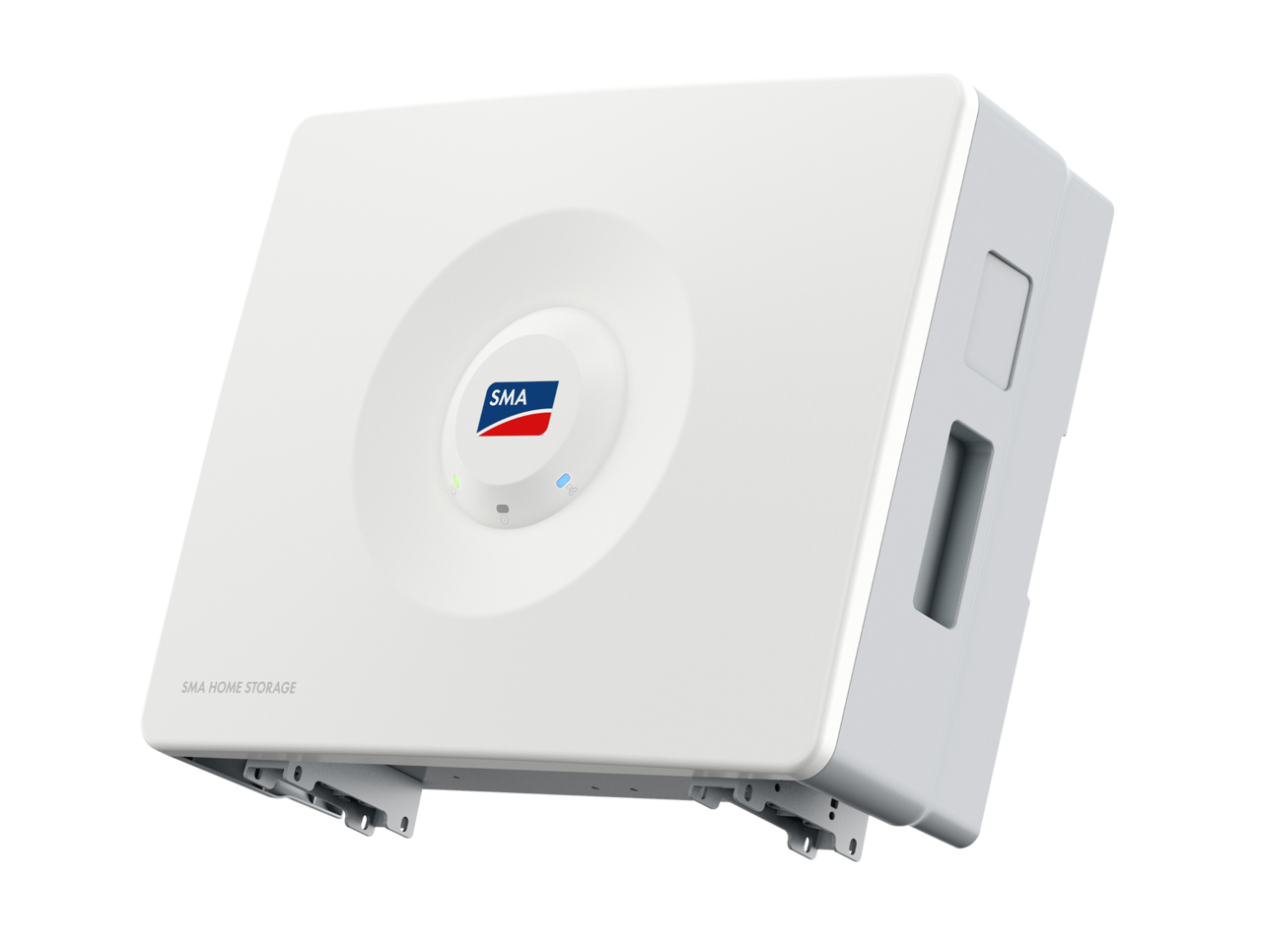

SMA Home Storage
In combination with the SMA Home Storage battery, the Sunny Tripower Smart Energy offers even more flexibility and enhanced energy storage.
Learn more
Sunny Tripower Smart Energy
Release Notes
Version 3.05.26.R (February 2025)
The update file contains all features of former firmware versions:
- Firmware Update (1.01.20.R) for SMA Home Storage
- Extended Batterie Service (ESH 2.0)
- Compatibility with battery Varta.wall (Wiring information in SMA document “Released Batteries”)
- New Backup operating mode: “Manual control”. Reduces noise emission and power consumption by using external Backup Power Switch.
- Communication bugfix: Freezing every 7 days
- Correction of FRT behavior when Grid Code EN50549 is selected
WARNING
This firmware update MUST NOT be used for STP Smart Energy (STPSE) when:
- STPSE is used as Battery Inverter (no PV-Generator connected to the PV inputs of STPSE)
- SMA Data Manager M (EDMM-10) is installed in the PV plant
- Sunny Tripower X (STP 12-50 … STP 25-50) is installed in the PV plant
Otherwise, the control algorithm of the STPSE will not work as expected. A downgrade of the firmware is not possible for installers.
Version 3.04.16.R (October 2023)
- New country settings:
- [AT] TOR Erzeuger Typ A V1.0: 2019 (without manual adjustments)
- [DK] Dansk Energi DK1: 2019 LV
- [DK] Dansk Energi DK2: 2019 LV
- [ES] TED749:2020 Typ A, P <= 100kW
- [PL] PN-EN 50549-1: 2019
- Compatibility of additional released batteries:
- SMA Home Storage (6.5 – 16.4)
- LG RESU Flex (8.6 – 17.2 kWh)
- Parallel operation of BYD HVS or HVM batteries
- Improvements:
- Power control algorithm for operation with big loads (EV-Charger, ...)
- Operation as “PV only” inverter
- Updating of power charts in WebUI
- Charging behavior of backup reserve limit
- Fixed issues:
- Event “7500 Fan fault” and “6201 Device fault”
- Improved battery events and labels
- Extended battery charging power to 10600W
Version 3.02.22.R (May 2023)
This firmware is fixing the issue with the Event 3800 “DC Overcurrent”
Version 3.02.20.R (March 2023)
- New country setting:
- [AT] TOR Generator Type A V1.0:2019
- [IT] CEI0-21:2019 System >11.08 kW int. Decoup. Protection Device
- [IT] CEI0-21:2019 System >11.08 kW ext. Decoup. Protection Device
- Compatibility of additional released batteries:
- BMZ Hyperion
- Axitec: Axistorage Li SH
- IBC era:powerbase
- SG Ready function for Multi Function Relay
- New event for battery emergency charging
- Improved progress indicator for update via WebUI
Sunny Tripower Smart Energy
Downloads
Planning tool Sunny Design
With Sunny Design, you can plan your tailor-made PV system in just a few clicks.
