SMA Large Scale Energy Solution​

Store energy and use it broadly

Store energy and use it broadly

Sustainable investing and maximum profit

With the SMA Large Scale Energy Solution​, you can store solar power. This enables you to manage peaks in demand, stabilize grid voltage and reduce energy costs considerably.

Secure investment in emerging technology

The SMA Sunny Central Storage UP battery storage system will increase the efficiency of your PV power plant. At the same time, battery storage systems perform important grid management functions. Grid frequency fluctuations are avoided thanks to smart plant control with the Power Plant Manager and grid voltage is restored in seconds. Sudden, costly increases in power consumption are prevented by means of load shifting. At night, the energy storage system is charged cost-effectively to cover consumption during the day. SMA storage solutions offer you further potential for maximizing the profit from your sustainable investment.

Benefits

[Translate to English:] Erneuerbare Energie zu jeder Tages- und Nachtzeit

Supplies renewable energy 24/7

[Translate to English:] Lastspitzen mit gespeicherter Energie ausgleichen

Compensates for load peaks with stored power

[Translate to English:] Hohe Flexibilität durch extrem schnelles Laden/Entladen

High flexibility through extremely fast charging/discharging

[Translate to English:] Zusätzliche Gewinnmaximierung

Additional profit maximization

AC-coupled systems

AC-coupled systems are ideal when existing PV power plants are retrofitted with battery-storage systems. But the AC-coupled battery-storage system also optimizes load management in new installations. It stores excess energy and makes it available again within milliseconds.

Components

AC-coupled storage connection

[Translate to English:] PV-Module

PV modules

Optimized for the local conditions and your requirements.

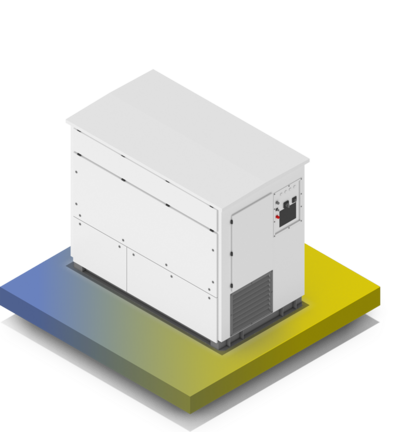

[Translate to English:] Sunny Central UP

Sunny Central UP

SMA central inverter that converts solar power (direct current) into usable alternating current.

Learn more

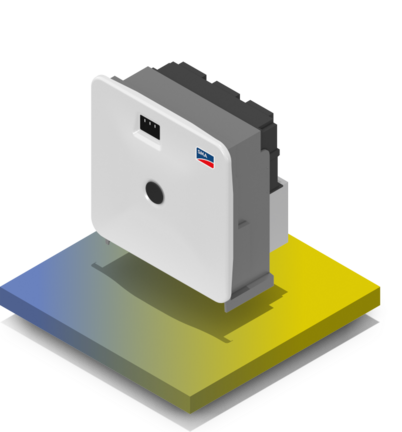

[Translate to English:] Sunny Highpower PEAK3

Sunny Highpower PEAK3

SMA string inverter that converts solar power (direct current) into usable alternating current.

Learn more

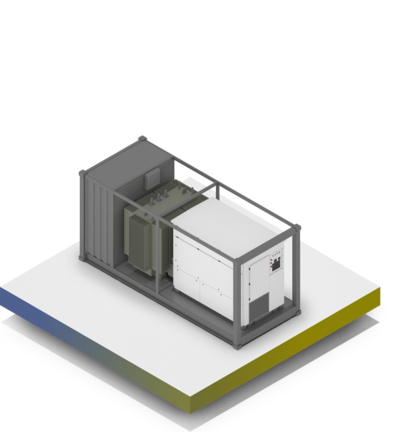

[Translate to English:] Medium Voltage Power Station UP

MVPS UP

Turnkey container solution with Sunny Central UP and a perfectly coordinated medium-voltage solution that includes a transformer and switchgear.

Learn more
[Translate to English:] Sunny Central Storage UP

Sunny Central Storage UP

SMA battery inverter that stores solar power temporarily in the battery and makes it available as required.

Learn more

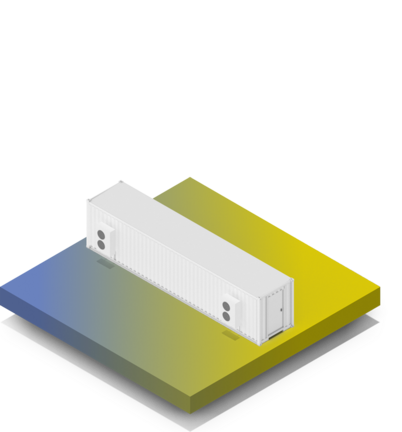

[Translate to English:] Batterie

Battery

Our Engineering Service team will advise you on the appropriate battery capacity and power for you.

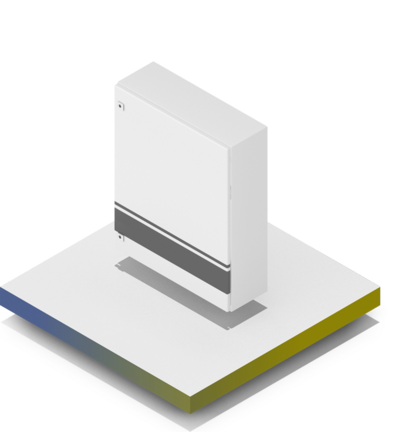

[Translate to English:] Power Plant Manager

Power Plant Manager

Smart energy manager that operates in conjunction with SMA Monitoring and is responsible for communication and overall system monitoring.

Learn more

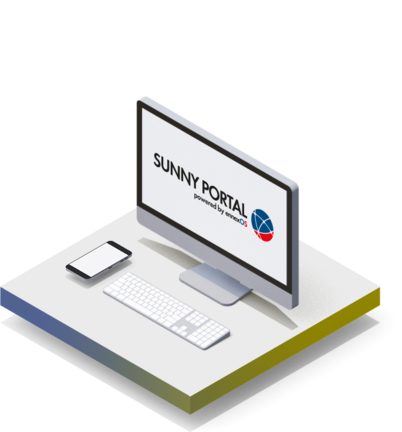

[Translate to English:] SMA Monitoring

SMA Monitoring

enables easy and efficient online monitoring of your SMA Energy Solution

Learn more

The system in detail

The SMA Large Scale Energy Solution​ allows you to store electricity that you can then sell as needed.

  • PV modules

    The PV modules generate direct current from incoming sunlight.

  • Sunny Central UP

    The SMA Sunny Central UP central inverter is the core of your SMA Large Scale Energy Solution​ with a centralized system layout. It converts the direct current generated by the PV system into alternating current to be able to feed this into the grid.

  • Sunny Central Storage UP

    The SMA Sunny Central Storage UP battery inverter temporarily stores the surplus solar power in the battery. It performs various grid support functions including frequency, voltage and reactive power control, and it can carry out a black start in the event that the grid collapses.

  • SMA Power Plant Manager

    The SMA Power Plant Manager monitors and manages the energy flows between producers, consumers and the utility grid. It secures need-based energy generation, helps stabilize the utility grid and contributes to optimal energy marketing.

  • Battery

    The battery efficiently stores the solar power temporarily and makes it available again as required. This means that you can use solar power around the clock and feed it into the grid as necessary.

  • SMA Monitoring

    With SMA Sunny Portal powered by ennexOS, you can keep track of current and historical system data at all times. This also enables you to see exactly how much electricity you could still sell.

SMA Sunny Central Storage UP inverter

Solar power available day and night

Information
Features

The Sunny Central Storage UP battery inverter stores energy in high-voltage batteries and makes it available as required. It can be used flexibly in both PV and hybrid systems. Its intelligent OptiCool cooling system ensures smooth operation, even in extreme ambient temperatures.

Learn more
  • Extremely efficient with a power output of up to 4,600 kVA and innovative OptiCool cooling system

  • Can store and discharge energy very quickly

  • Suitable for continuous power in power plants in any climate

  • Enables dynamic grid support

[Translate to English:] SMA Wechselrichter Sunny Central Storage UP

SMA Sunny Central Storage UP battery inverter

How it works

  • The SMA Power Plant Manager ensures that surplus solar energy is stored in the battery-storage system via the SMA Sunny Central Storage UP battery inverter. Alternating current is converted into direct current.

  • The battery-storage system stores electricity from the sun and other energy sources.

  • The solar power stored in the battery is fed back to the supply grid as and when needed. To do so, the SMA Sunny Central Storage UP battery inverter converts the direct current back into alternating current.

DC-coupled systems

DC-coupled systems are ideally suited for the new installation of large PV power plants with Sunny Central 1,500 V technology. Here, the battery and PV array are connected to the central inverter on the DC side, and excess solar energy is fed directly into the battery in a particularly efficient manner.

Components

DC-coupled storage connection

[Translate to English:] PV-Module

PV modules

Optimized for the local conditions and your requirements.

[Translate to English:] Sunny Central UP

Sunny Central UP

SMA central inverter that converts solar power (direct current) into usable alternating current.

Learn more
[Translate to English:] Sunny Highpower PEAK3

Sunny Highpower PEAK3

SMA string inverter that converts solar power (direct current) into usable alternating current.

Learn more
[Translate to English:] Medium Voltage Power Station UP

MVPS UP

Turnkey container solution with Sunny Central UP and a perfectly coordinated medium-voltage solution that includes a transformer and switchgear.

Learn more

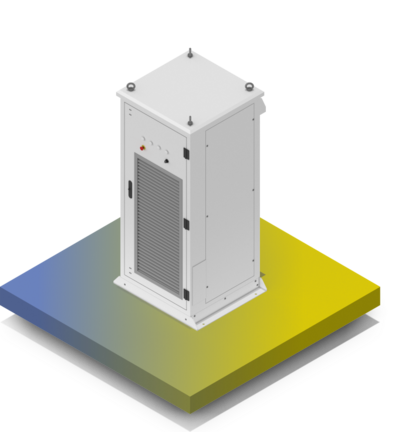

[Translate to English:] DC-DC Converter

DC-DC Converter

Allows the DC voltage to be increased or reduced, thus controlling the direction of energy flow to the battery. If the voltage is increased slightly, the battery will be charged. If it is reduced, the battery will discharge.

Learn more
[Translate to English:] Batterie

Battery

Our Engineering Service team will advise you on the appropriate battery capacity and power for you.

[Translate to English:] Power Plant Manager

Power Plant Manager

Smart energy manager that operates in conjunction with SMA Monitoring and is responsible for communication and overall system monitoring.

Learn more
[Translate to English:] SMA Monitoring

SMA Monitoring

enables easy and efficient online monitoring of your SMA Energy Solution

Learn more
