[Translate to English:] Sunny Highpower PEAK3 - Customized for tomorrow, today. ennexOS ready

Customized for tomorrow, today. ennexOS ready

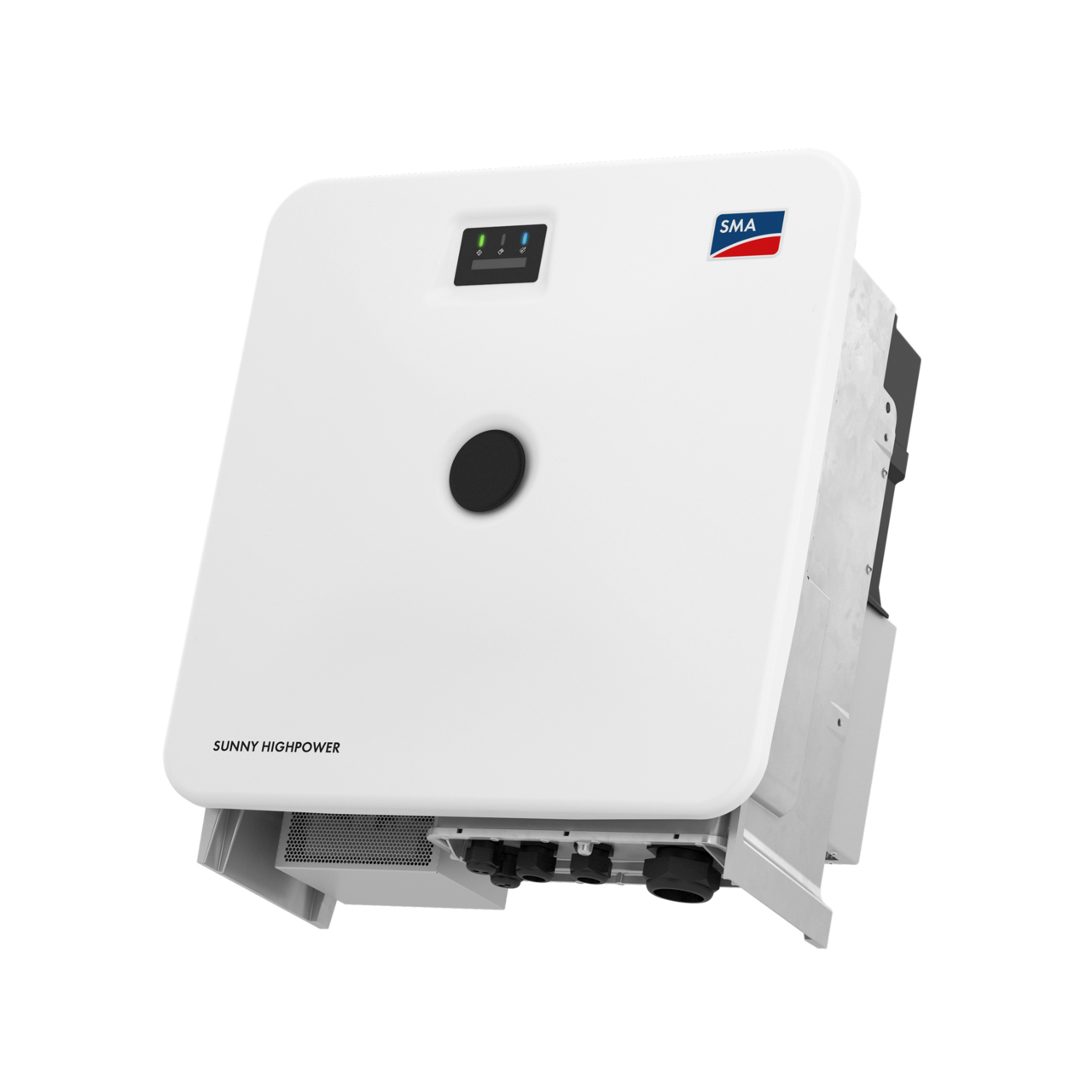

Sunny Highpower PEAK3

1500 VDC, 180 kW, compact design

Get large-scale projects up and running easily

PEAK3 stands for pure power. With its compact design, the inverter offers the highest power density per device. The advantages: optimal performance at a light weight. The result is cheaper transportation and easier installation. In combination with the project-specific DC Combiner Boxes, the PV array can be oversized up to 200 %. The Data Manager completes the system and enables it to fulfill all of the grid operator’s requirements.

Did you know?

Centralized or decentralized.

Which is the best layout for a large-scale PV power plant?

Read our whitepaper

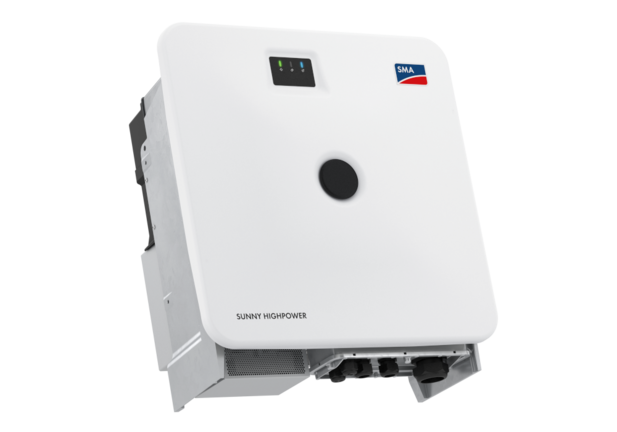

SMA Sunny Highpower PEAK3

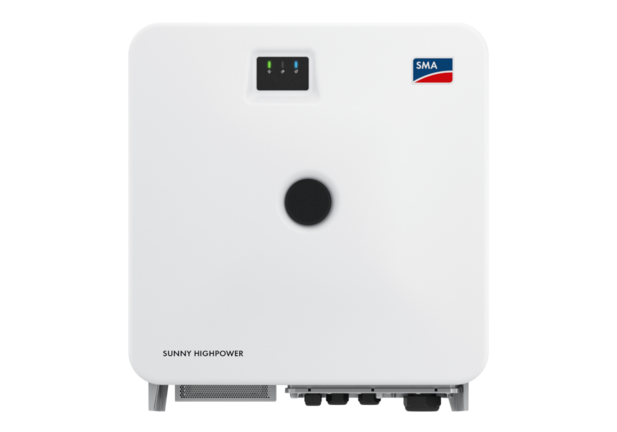

SMA Sunny Highpower PEAK3

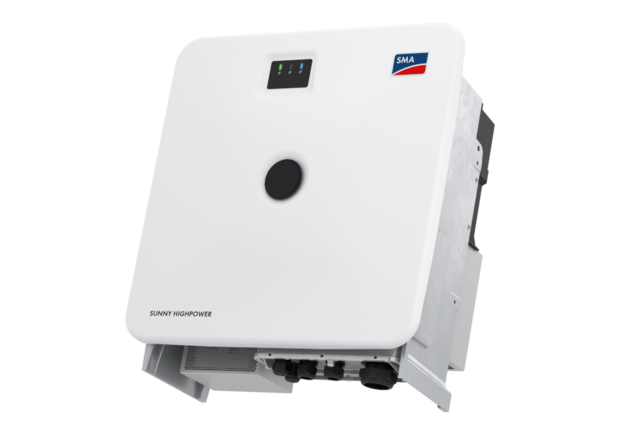

SMA Sunny Highpower PEAK3

Maximum safety & reliability

The PEAK3 inverter focuses on what is most important – maximum yield and optimal plant availability. All features and components are custom-tailored in order to keep the weight down, to minimize potential error sources and to maximize efficiency. Proven technologies such as the active cooling system SMA OptiCool ensure a long lifetime of the inverters.

Flexible, easily scalable plant design

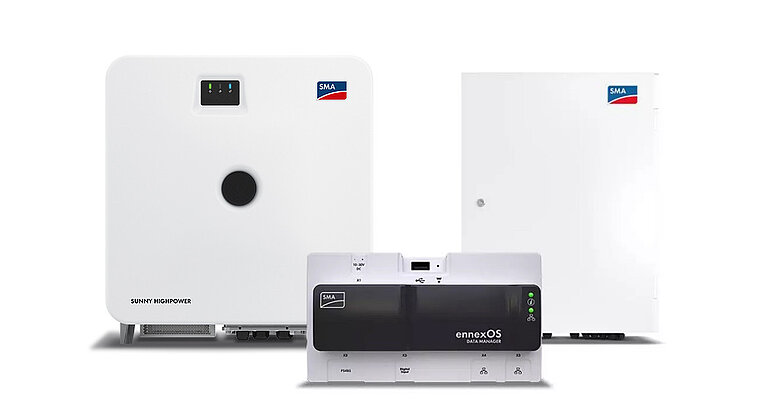

The PEAK3 system solution combines the advantages of a decentralized system layout with those of the central inverter concept. The DC Combiner Boxes enable efficient planning and easy expansion of large-scale solar plants even on heterogeneous terrain. Thanks to the modular approach, projects can be scaled both in terms of power and function. This means maximum flexibility in the plant design.

Ready for the digital energy world of tomorrow

The PEAK3 system solution is ready for ennexOS, SMA’s pioneering digital platform. ennexOS converges the data of all relevant energy sectors to realize modern, forwardlooking products in the energy industry. The platform is gradually extended and currently offers powerful features such as satellite-based performance ratio monitoring.

Further information: www.ennexos.com

Fast installation, easy commissioning

The PEAK3 system solution offers smart functionalities for quick and safe installation of all devices. Ergonomic grips and the integrated hook-in mechanism simplify the mounting of the inverters. Large, stiff DC cables can be conveniently routed via a separable connection plate and allow hassle-free connection. A single Data Manager enables up to 200 inverters to be commissioned centrally in just a few minutes.

Efficient control, convenient monitoring

Each device can be controlled directly via reliable, fast Ethernet communication between Data Manager and inverter. The entire plant portfolio can be centrally monitored with the new Sunny Portal powered by ennexOS. Changes to the configuration are easily made across plants without setting up multiple VPN connections. Additional monitoring systems can access all devices via the open Modbus / TCP interface.

The future-proof solution that grows with your requirements

More than 20 years of utility experience have gone into the development of the PEAK3 system solution. Central handling, decentralized system and a modular concept – that’s exactly what makes PEAK3 so convincing. The powerful supplements help you get the most out of large PV plants.

PEAK3 – Exactly what is needed to meet the highest demands for maximum yield.

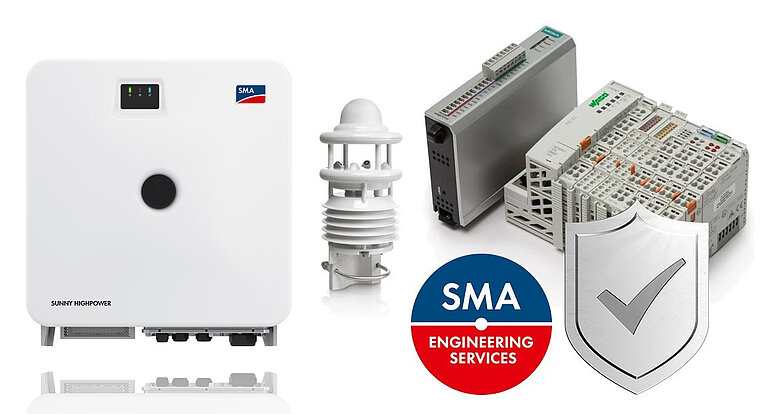

Smart Connected for Utility Plants

  • Free and automatic inverter monitoring by SMA
  • Proactive communication by e-mail in the event of faults
  • Lower lifecycle service costs – no on-site diagnosis needed

SMA Engineering Services

  • Comprehensive consulting by technical experts from early project stages
  • Static generator evaluation including load flow and short-circuit analysis
  • Optimization of plant behavior in systems

Additional products

  • Weather Station: Professional measuring equipment for synchronous logging of temperature, relative humidity and irradiance
  • Remote I/O: The preconfi gured I/O systems are perfectly coordinated with ennexOS and can be easily integrated into a system

Decentralized solution with up to 180 kW for large-scale PV power plants

Thanks to an intelligent system structure, all inverters and the Data Manager are installed centrally. The DC Combiner Boxes are distributed in the field. The result: maximum performance, improved installation and maintenance, cost-optimized cabling.

System Diagram

Whitepaper

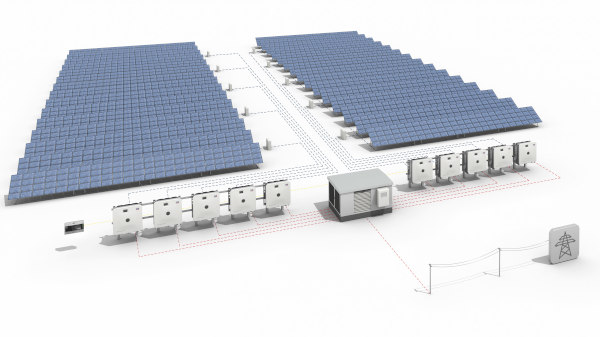

Centralized system layout - modular inverter concept

Centralized or decentralized. Which is the best layout for a large-scale PV power plant?

Read our whitepaper

Sunny Highpower PEAK3

Downloads

Operating manual

Operating manual

Now the operating manual is also available as

eManual
