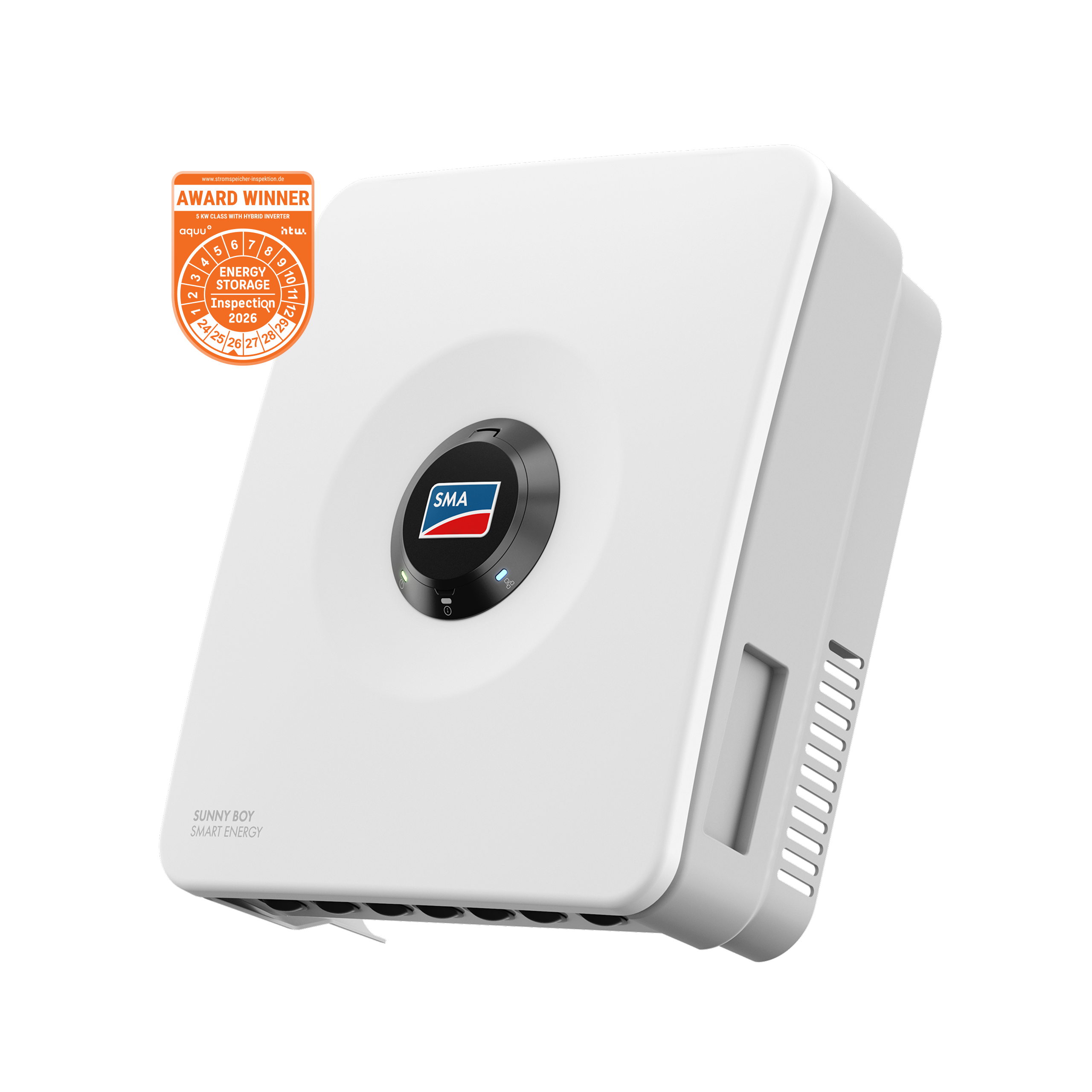

El inversor híbrido monofásico dos en uno de SMA
El inversor híbrido monofásico Sunny Boy Smart Energy de SMA es la solución dos en uno para la generación y el uso flexible de energía solar en la propia vivienda.
Suministro fiable y sostenible de energía
El Sunny Boy Smart Energy es el inicio ideal hacia la transición energética integral en el hogar. Se trata de un inversor de batería y un inversor fotovoltaico todo en uno, que garantiza un suministro de corriente seguro y sostenible. Gracias a la fuente de alimentación de emergencia integrada para cargas seleccionadas y a una función de respaldo de toda la vivienda para instalaciones monofásicas y trifásicas, seguirá funcionando aunque falle la red pública.
Máximo aprovechamiento de la energía fotovoltaica
Está equipado con tres seguidores del punto de máxima potencia (MPPT), que pasan a ser cuatro en las nuevas versiones de alta potencia de 8,0 y 9,9 kW. Esto garantiza una máxima flexibilidad, incluso en tejados con diferentes orientaciones. El inversor híbrido carga las baterías conectadas de forma especialmente rápida, aprovechando al máximo incluso los periodos del año con pocas horas de sol.
Las bombas de calor, las soluciones de carga para vehículos eléctricos y la gestión inteligente de la energía pueden integrarse de forma flexible en el sistema energético en cualquier momento. Esto le hará más independiente de los crecientes costes energéticos y del suministro de energía convencional.

SMA Home Storage Solution marca un nuevo récord de eficiencia
Puntuación máxima del 92,8 % SPI en el ranking independiente de sistemas de almacenamiento (HTW Berlín)
(Nota de prensa disponible solo en inglés)
Leer nota de prensaMás ventajas
Flexibilidad insuperable
3 seguidoresMPP para un diseño flexible en el tejado
Baja tensión de arranque
Fuente de alimentación de emergencia integrada para cargas seleccionadas
Solución opcional SMA Backup Home para la función de respaldo de toda la vivienda
Óptimo rendimiento energético
Rápida capacidad de carga y descarga de una batería conectada
Sobredimensionamiento de la planta fotovoltaica para mayores rendimientos energéticos
Optimización del rendimiento integrada con SMA ShadeFix
Instalación sencilla y rápida puesta en marcha
Conexiones de cable estándar
SMA Easy Lock para la apertura y el cierre sencillos de la tapa
Puesta en marcha simplificada paso a paso a través de la aplicación SMA 360°
Opciones de almacenamiento con valor añadido
Compatible con la batería SMA Home Storage
Compatible con baterías de alta tensión de reconocidos fabricantes
SMA Backup
La solución SMA Backup para instalaciones con el Sunny Boy Smart Energy garantiza un suministro eléctrico fiable incluso en caso de cortes de suministro eléctrico. Gracias a la transición automática y sin problemas entre el modo conectado y aislado de la red, los hogares cuentan con suministro eléctrico fiable en todo momento.

SMA Home Storage
En combinación con el inversor híbrido Sunny Boy Smart Energy, el SMA Home Storage ofrece aún más flexibilidad y almacenamiento de energía, con un auténtico valor añadido.

Ciberseguridad en SMA
¿Desea proteger lo que realmente importa a sus clientes y blindar su empresa frente a reclamaciones legales, hoy y en el futuro? Confíe en la ciberseguridad de referencia de SMA.

AI Generated
Sunny Boy Smart Energy
Release Notes
Version 3.17.xx.R (November 2026)
- ennexOS: Greater Flexibility in System Configuration
All products based on the ennexOS platform can now be configured as a System Manager. This includes, for example, Sunny Tripower Hybrid X, Sunny Tripower X, Sunny Boy Smart Energy, and SMA eCharger.
This allows the System Manager to be selected more flexibly according to the specific system design. - New Integrated Energy Management for Optimized Energy Use
The new firmware introduces new energy management functions based on the ennexOS platform.- Energy Planner (Manual)
The Energy Planner, previously available under the name "Scheduler," is enabled by default and optimizes solar self-consumption around the clock. In addition, plant owners can:- Define time-dependent limits to reduce peak loads.
- Manually schedule battery charging and discharging behavior.
- Energy Maximizer (Automatic)
The Energy Maximizer controls the energy system fully automatically and intelligently with the goal of reducing electricity costs for plant owners. It considers factors such as:- PV generation forecasts
- Consumption forecasts
- Dynamic electricity tariffs
- Energy Planner (Manual)
- Control of Energy Consumption and Energy Generation via EEBUS
The EEBUS use cases LPC and LPP can now be implemented through an EEBUS control box and the System Manager:- LPC (Limitation of Power Consumption): Limitation of energy consumption from the grid
- LPP (Limitation of Power Production): Limitation of energy generation
- More Robust Modbus Communication
The overall robustness of Modbus communication has been improved.
In SCADA systems, parameters can now be transmitted at high frequency even if their values do not change with every transmission. If a value remains unchanged, no additional event is logged.
In addition, the Modbus server profile has been standardized and is intended to be used for all new products. For existing applications, a compatibility server profile remains available via the Data Manager. - Faster and Centralized Diagnostics
In systems with devices based on the ennexOS platform, diagnostic files from subordinate devices can now be retrieved centrally through the System Manager.
This simplifies analysis of the entire system, as diagnostic files no longer need to be retrieved separately from each individual device. - Compatibility with SMA Storage M
The Sunny Boy Smart Energy 3.6 to 9.9 is now compatible with the SMA Storage M with capacity ranging from 12.3 kWh (3 modules) to 28.7 kWh (7 modules). - Certification for Spain
The Sunny Boy Smart Energy 8.0 and 9.9 is now as well certified for the spanish market. - Implementation of new grid codes
For SBSExx-50: Great Britain and Poland
For SBSExx-US-50: Puerto Rico - Bugfixes / Improvements
Includes various stability improvements and fixes known issues to ensure reliable system performance. - Closed vulnerabilities
CVE-2025-67735, CVE-2025-14524, CVE-2025-68161, CVE-2026-3805, CVE-2025-68471, CVE-2026-3783, CVE-2025-67735, CVE-2025-67735, CVE-2026-3784 - Please also refer to the lists of previous firmware releases below.
- Please note that as a result of the update, stand‑alone inverters that were previously configured as subordinate devices can no longer directly connect to Sunny Portal powered by ennexOS. Affected inverters must be reset and then configured again as a System Manager.
- Minimum version to update to 03.17.xx.R is 03.12.xx.R or higher.
If the device has a lower version, enable automatic updates or use the "Check for update and install it" function via generic parameter section of the device.
Version 03.16.xx.R (April 2026)
- Improved behavior during grid anomalies
During grid anomalies (e.g. overvoltage or overfrequency), in which the inverter normally needs to shut down, it is now possible to charge the battery with PV energy to avoid losses and improve overall performance. - Optimized utilization of all batteries in the system during backup operation
Batteries are balanced to maintain the same SoC during backup operation mode and can therefore contribute energy to the household. - Battery Commissioning Test
With Battery Installation Mode it is possible to charge and discharge the connected battery as a functional test during installation. - Charging / discharging to a defined SoC level
Manually bringing a battery module manually to a defined SoC level is now possible with this feature. This is mostly needed if a battery module from BYD or Pylontech is added to the system or replaced.
(With the SMA Home Storage, this is not required as we have the automated module balancing within the firmware.) - Easier and automatic configuration of sub-devices during commissioning via the System Manager
Automatic setting of country codes, for example for sub-devices based on System Manager configurations; decreasing commissioning time. - More detailed information about the status of the device
Within the status widget of each device the current status is now displayed, e.g. “Backup“ if the device is in backup operation. - Import and export of favorites for parameters or instantaneous values
It is now possible to import or export selected parameters / instantaneous values as favorites to provide a clear overview at any time about the most important ones. - Country codes that are outdated are now marked as “Obsolete”
- Support for the BattVO regulation
Parameters of all attached batteries are available via the inverter’s user interface. Therefore, you have to select the device and navigate to Monitoring / Diagnosis / Battery data. - Compliance with requirements of §14a EnWG (Energiewirtschaftsgesetz)
The digital input of the SBSE can now be used to reduce the charging of the battery from the grid to be in conformity with §14a EnWG. If configured as a System Manager this signal can be forwarded to other batteries in the system. - Bug fixing / Improvements
This update includes various stability improvements and fixes to known issues to ensure more reliable system performance. - Closed vulnerabilities
CVE-2025-58057 - Minimum version to update to 03.16.xx.R is 03.12.xx.R or higher
If the device has a lower version, please contact Service.
Version 3.14.x.R
- RED compliance:
Fulfilment of all RED and ETSI EN 303 645 cybersecurity requirements, further enhancing the system’s IT security. - Additional Energy Management functionality*:
Possibility to define static schedules with flexible modes, local operation, designed for commercial use. - New PUK 2.0:
Reset passwords directly via the User Interface – secure, fast, and no support contact needed. - Bugfixes / Improvements:
Includes various stability improvements and fixes for known issues to ensure reliable system performance. - Extended storage capacity:
Connection of up to five SMA Home Storage modules with a total capacity of 16.4 kWh. - Optimized backup operation:
Additional Sunny Boy inverters can now support the household in backup mode during power outages (in combination with SBSE and SMA Backup). - Flexible PV system:
PV inputs can now be connected in parallel - Latest grid codes integrated:
Faster commissioning, compliant, and no manual configuration needed.
* The mostly used mode „Maximized self-consumption optimization“ is set as default. For more-advanced functions, residential users typically rely on the Sunny Home Manager, which offers a self-learning energy management system.
Version 3.12.17.R (June 2025)
Features & Improvements
Support for our new products for Backup, SMA Backup 3P Kit (Germany), SMA Backup 1P (single-phase markets)
Possibility to configure a Backup Reserve on the user interface
Controllability of the internal relay of the SBSE by the Sunny Home Manager for the SG-Ready interface
Battery compatibility with Pylontech Force H3 (Please see for further information List of compatible batteries)
Automatic update of the SMA Home Storage
Improvements of App commissioning (e.g. time set without reboot)
Support for commercially available external passive WIFI antenna
Preparation for the fulfilment of CSIP Australia requirements, final certification to be done
Fulfilment of requirements for PSTI and G100 for UKImproved usability: Diagnostic data is now to be found under the menu item “Monitoring -> Diagnosis” on device level
General improvements and bug fixes
Version 3.8.12.R (August 2024)
Features & Improvements
Increased WIFI connectivity
Individual LED flashing code for when the backup mode is active
Enhancements during the App commissioning process to save time and receive better feedback about the status
Diagnosis possibility of the PV generator with display of the IV curve on the user interface of each inverter in the system
Certification for Canada, Poland and UK available
General improvements and bug fixes
Sunny Boy Smart Energy
Preguntas frecuentes
¿Cuándo estará disponible el Sunny Boy Smart Energy?
La introducción en el mercado del Sunny Boy Smart Energy está prevista para el primero trimestre de 2024. Estará disponible en Alemania, Benelux, España e Italia, dependiendo de la certificación específica de cada país. En 2024 seguirán Australia y otros países europeos.
¿Cómo puedo obtener una oferta para el nuevo Sunny Boy Smart Energy junto con una planta fotovoltaica completa, incluido el sistema de batería?
Puede enviarnos su solicitud a través de la búsqueda de técnicos especializados de SMA. Se la reenviaremos a nuestros instaladores certificados para que estos le preparen una oferta.
¿A qué distribuidores de SMA puedo pedirles el Sunny Boy Smart Energy?
Aquí podrá encontrar una relación de nuestros socios distribuidores.
Socios distribuidores de SMA
¿En qué clases de potencia está disponible el Sunny Boy Smart Energy?
El inversor está disponible en las siguientes clases de potencia: 3,6 / 4,0 / 5,0 / 6,0 kVA
¿Puede combinarse el Sunny Boy Smart Energy con el EV Charger de SMA?
Sí, el Sunny Boy Smart Energy puede combinarse con el EV Charger de SMA a través del Sunny Home Manager 2.0.
¿Cuánto dura la garantía del Sunny Boy Smart Energy?
La garantía del fabricante de SMA para el Sunny Boy Smart Energy tiene una duración de 5 años. El propietario puede obtener una garantía adicional de 5 años registrando su inversor en el SMA Online Service Center. Encontrará información adicional aquí.
Ampliación de la garantía de 5 años
¿Se puede ampliar la garantía del Sunny Boy Smart Energy?
El propietario puede obtener una garantía adicional de 5 años registrando su inversor en el SMA Online Service Center. La garantía puede ampliarse hasta 20 años adquiriendo extensiones de garantía de SMA. Encontrará información adicional aquí.
Ampliación de la garantía de hasta 20 años
¿Es posible una orientación este-oeste con el Sunny Boy Smart Energy?
Sí. Los tres seguidores MPP integrados también permiten este tipo de configuraciones con el Sunny Boy Smart Energy.
¿Hay integrada una protección contra sobretensión?
Opcionalmente, se puede conectar una protección contra sobretensión en el lado de CC. Se ofrecen como tipo 1+2 y tipo 2 y accesorios de tres fabricantes.
¿Puedo utilizar varios dispositivos Sunny Boy Smart Energy en un mismo sistema?
Podrá utilizar varios inversores Sunny Boy Smart Energy en un mismo sistema. Sin embargo, en combinación con el Sunny Home Manager no es posible utilizar varios inversores Sunny Boy Smart Energy en una planta.
¿Es posible integrar más inversores fotovoltaicos en el sistema?
Sí, esto es posible. Además, el Sunny Boy Smart Energy puede cargar entonces tanto desde el lado de CC como desde el de CA.
¿Hay cursos de formación especiales para el Sunny Boy Smart Energy?
La SMA Solar Academy ofrece una serie de seminarios web sobre este nuevo inversor.
Nuestros formadores estarán encantados de responder a cualquier pregunta técnica o general que pueda tener.
SMA Solar Academy
¿Está equipado el Sunny Boy Smart Energy con SMA ArcFix?
Sí, el inversor híbrido cuenta con SMA ArcFix, el sistema de detección e interrupción de arcos voltaicos (AFCI), que detecta eficazmente posibles arcos en la planta fotovoltaica y finaliza el funcionamiento de inyección antes de que se produzca un incendio.
¿Cuál es la capacidad máxima de la función SPS (Secured Power Supply)?
La capacidad máxima corresponde a la de una toma normal: 16 A a 230 V, lo que da un máximo de 3680 W.
¿Existen límites de capacidad para las baterías de SMA y para otros proveedores de baterías?
Los límites de capacidad se derivan de la tensión máxima del sistema de baterías. Los módulos se conectan en serie y la tensión aumenta con cada módulo de batería. Debido a la limitación de tensión de 500 V, es posible conectar un máximo de cuatro módulos SMA Home Storage. En el caso de baterías de otros fabricantes, es importante comprobar la tensión máxima del sistema de baterías.
¿Es posible integrar una bomba de calor en el sistema?
Sí, gracias al contacto SG-Ready, EEBUS y SEMP incluido en el Sunny Boy Smart Energy, es posible instalar una bomba de calor en una planta. Adicionalmente, se requiere un Sunny Home Manager.
¿Es posible controlar los strings individuales conectados a cada seguidor MPP?
Es posible monitorizar cada string individualmente a través del Sunny Portal powered by ennexOS en la página Analysis Pro.
¿La función de respaldo y la de Secure Power son mutuamente excluyentes?
Sí, porque utilizan la misma salida. Decídase, por lo tanto, por una de las dos funciones durante la planificación y diseñe el sistema en consecuencia para un caso de aplicación.
¿Se pueden instalar posteriormente la función de respaldo y la función Secure Power?
Sí, ambas pueden instalarse posteriormente.
¿Puede funcionar el Sunny Boy Smart Energy solo como inversor fotovoltaico? ¿Puede funcionar sin batería?
Sí, el inversor híbrido Sunny Boy Smart Energy también puede funcionar solo como inversor fotovoltaico. La batería se puede añadir más adelante.
Nota:
* Si la batería se va a añadir en un futuro lejano, recomendamos instalar un inversor fotovoltaico y añadir una solución AC. Es posible que en unos años aparezca una nueva generación de baterías que haga que el dispositivo actual sea menos adecuado.
* El inversor híbrido Sunny Boy Smart Energy puede proporcionar energía de respaldo. Si no hay batería conectada, el sistema solo funcionará mientras brille el sol.
Restricciones:
* En sistemas con Sunny Home Manager 2.0, no se puede instalar otro inversor de batería.
¿Puede funcionar el Sunny Boy Smart Energy solo como inversor de batería?
Sí, el inversor híbrido Sunny Boy Smart Energy también puede funcionar solo como inversor de batería.
Sunny Boy Smart Energy
TechTip
TechTip: Unboxing SMA Sunny Boy Smart Energy 3.6 / 4.0 / 5.0 / 6.0
TechTip: Connecting an SMA Home Storage to a Sunny Boy Smart Energy 3.6 / 4.0 / 5.0 / 6.0
TechTip: Secure Power Supply Operation with a Sunny Boy Smart Energy 3.6 / 4.0 / 5.0 / 6.0
TechTip: Configuring Sunny Boy Smart Energy with SMA Home Storage in the commissioning wizard
Planificar una instalación con Sunny Design
Con Sunny Design, podrá diseñar instalaciones fotovoltaicas a medida, incluyendo sistemas de almacenamiento y movilidad eléctrica, con solo unos clics.
Para propietarios de viviendas y empresarios
Si tiene alguna otra pregunta, póngase en contacto directamente con SMA.
Para instaladores especializados y proyectistas de instalaciones solares
Encuentra ahora el socio comercial de SMA más adecuado para ti.
