Hybrid Energy Supply – Spain, 2016

PV Agricultural Application – 43.2 kW

Wine production is an important agro-food activity in large parts of Spain. The LIFE REWIND project shows that the use of renewable energy is viable from a technical, environmental and economic perspective.

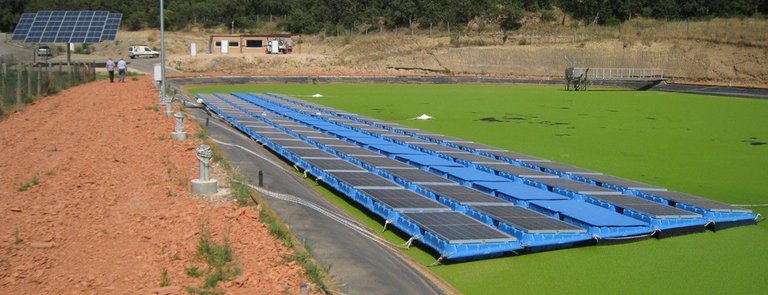

Suministros Orduña as EPC has provided the materials in this project. Solar energy is generated from Solar trackers, floating fixed structures, and SMA STP inverters in an isolated grid using 3 Sunny Island battery inverters. The system also includes an electrical vehicle with H2 cells and advanced load control.

Finca Viñas del Vero, Barbastro, Spain


Peak Power
43.2 kWp

Annual Yield
71 MWh

CO2 reduction
65 tons per year

System Technology
2 Sunny Tripower 12000TL-20
1 Sunny Tripower 20000TL-10

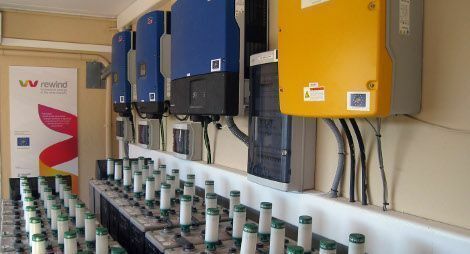

3 Sunny Island 8.0H battery inverter
1 Sunny Webbox +Sunny Portal
3 Sensor box
1 tracker DEGER D-100
160 solar panels REC Twin Peak, 270 Wp
Battery: Hoppecke OPzS 2.680 Ah C10
Electricla vehicle using H2 cells
Innovative load control
